EDGE Innovate Extends its Line of Screening Solutions with the SCREENPRO S16

The SCREENPRO S16 is the latest addition to the SCREENPRO range from EDGE Innovate, following the successful launch of the larger SCREENPRO S18 in 2024. Building on the proven performance and robust design of its predecessor, the SCREENPRO S16 offers a more compact solution without compromising on efficiency or versatility.

Designed to handle feed capacities of up to 600 tph, the SCREENPRO S16 is ideal for mid to large-scale operations, delivering high production rates with precise screening. It features a 14m² screening surface, a wide oversize discharge conveyor, with adjustable screening angles from 14 and 20 degrees, ensuring both high throughput and exceptional product quality.

The SCREENPRO S16 incorporates a 4.9m X 1.5m (16’ x 5’) two-deck screen, with a heavy-duty feed hopper making it adept at both primary and secondary screening across a variety of materials, from construction debris to aggregates and recycled materials. This versatility is further enhanced by a range of screen media options, including woven mesh, punch plate, finger screens, and bofor (grizzly) decks, allowing users to tailor the machine to different feed materials and final grain sizes.

To meet the demands of recycling applications, the SCREENPRO S16 can be equipped with both over-band magnets and magnetic head drums for the extraction and recovery of ferrous metals.

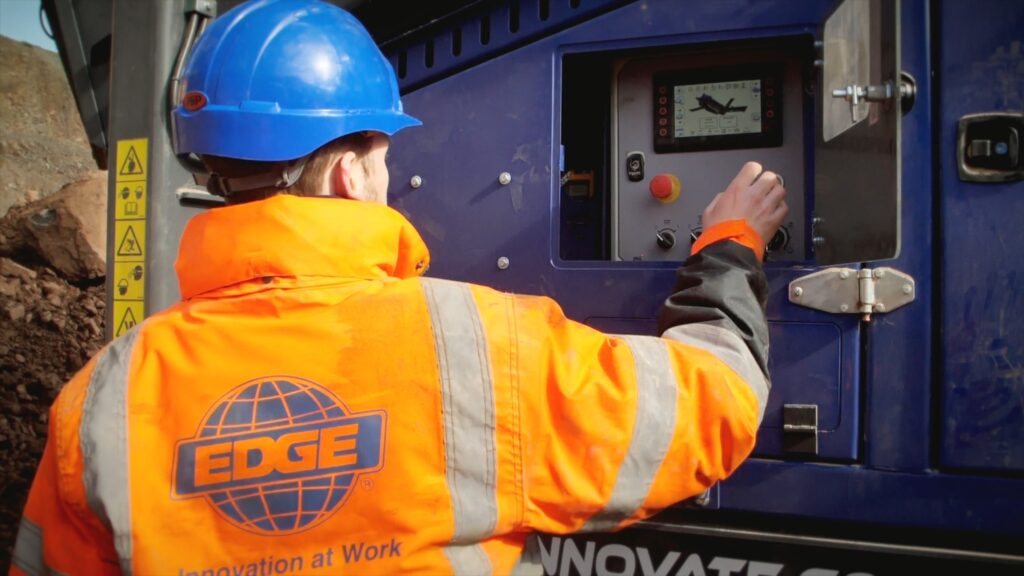

With intelligent load management, a low-level feed hopper, 2 or 3 way split configuration, hydraulic folding conveyors, and a fully integrated power unit with large service access; the SCREENPRO S16 is engineered for ease of use and maximum operational uptime. The user-friendly control system, featuring sequential start/stop functionality, enhances both performance and safety.

To ensure minimal downtime, the screenbox encompasses hydraulic lift-up functionality for a quick and efficient mesh exchange process, supported by full access walkways on both sides of the screen.

The EDGE SCREENPRO S16 also offers added remote functionality for improved operator efficiency and safety. All major functions on the S16 including tracking, feed conveyor speed adjustment, sequential start up and hopper jacklegs can be remotely operated from a safe distance of up to 100m or in the comfort of the operator’s cabin.

Powered by either a Caterpillar Tier 4 Final / Stage V engine, the SCREENPRO S16 drive system provides the operator with a reliably, durable and fuel-efficient screening solution. In line with EDGE Innovate’s commitment to sustainability, the SCREENPRO S16 and S18 models are available with  dual power and electric hybrid drivetrains for CO2 emission-free operation.

As the second product to be released in the SCREENPRO range, the SCREENPRO S16 offers the same level of reliability and innovation that EDGE Innovate customers have come to expect, now in a more compact form that meets the needs of diverse screening applications.

Steven Conway, EDGE Innovate Territory Sales Manager – “During the research phase, we engaged closely with our distribution network to discuss specifications and the core requirements for our customers. I believe we’ve successfully designed and launched the SCREENPRO S16, which we feel is a robust, reliable, efficient, and is user-friendly. It’s also very easy to service, maintain and transport—features that we see as core requirements for any customer in the quarrying and recycling industries”

“EDGE Innovate will continue to widen our product offering through the SCREENPRO range, allowing EDGE to meet the varying applications and budgets of our customers. The SCREENPRO S18 and now the newly revealed S16, illustrates our commitment to innovation. Expect to see future editions to this range in 2025 as the EDGE team continue to enhance our SCREENPRO offering”.
