Vermeer Launches Tracked HG4000TX Horizontal Grinder with Advanced Technology Options

9 Aug 2025  |

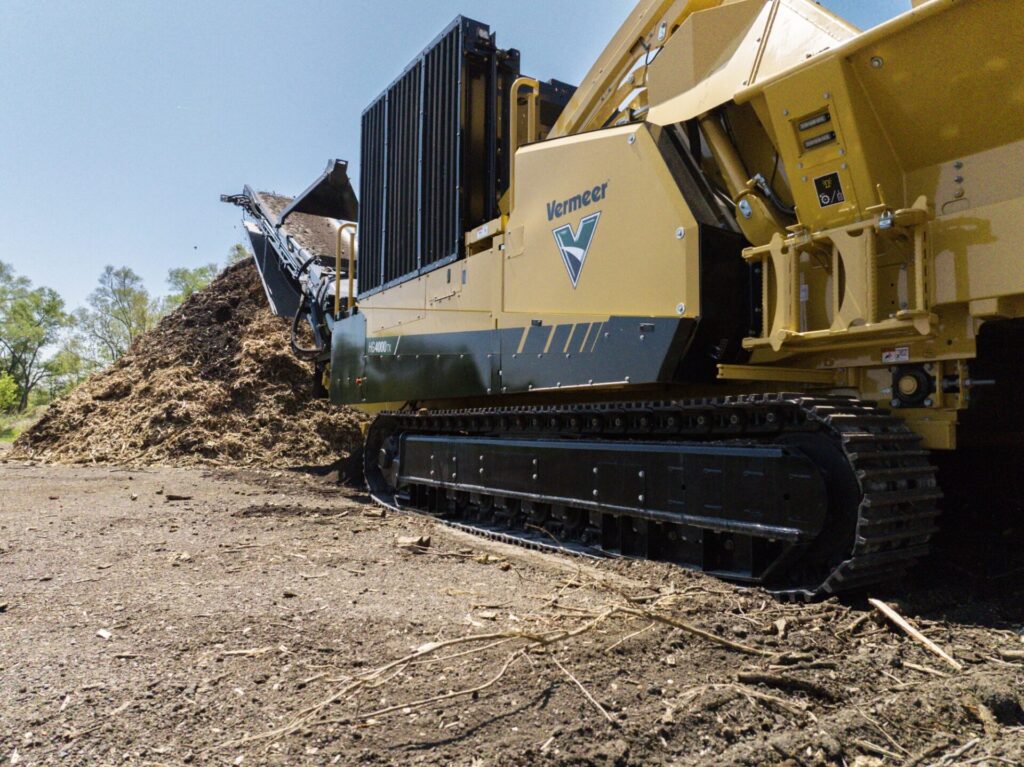

The new Vermeer HG4000TX horizontal grinder combines the jobsite mobility of a tracked undercarriage with the proven high-performance grinding capabilities of the HG4000 model. Equipped with a 536-hp (399.7-kW) CAT® C13B T4F/Stage V diesel engine, the HG4000TX includes the Series III duplex drum and advanced technology options to enhance operator efficiency.

“We introduced the trailered HG4000 horizontal grinder a couple of years ago, and it’s been a popular machine throughout the world,” said Jeff Bradley, product manager for Vermeer recycling equipment. “We also understand that many companies would prefer a tracked unit for the flexibility it provides on certain jobsites. The HG4000TX is the result of that feedback. We’ve taken a proven, powerful platform and engineered a tracked version that delivers the mobility they need without compromising the performance, robust design or support they count on from Vermeer. But we didn’t stop there. On the HG4000TX, we’re also introducing several new technology options designed to help crews work more efficiently and create more value from the material they process.”

Productivity-enhancing options

The HG4000TX can be equipped with several productivity-enhancing options. For operators looking to enter the colored mulch market or for mulch producers wanting to expand their capabilities, the optional Vermeer coloring system is fully integrated into the grinder. This onboard system eliminates the need for additional coloring equipment on the jobsite, allowing crews to produce high-quality colored mulch with just the grinder, a water source and dye. The system automatically adjusts dye and water flow based on material feed, helping to minimize waste.

For greater operational insight, the optional Vermeer patented productivity monitoring system empowers users with next-level knowledge on the job. Operators can access real-time data regarding both the volume of material processed and the fuel consumption per cubic yard throughout the day. This capability to visualize key metrics enables operators to make informed decisions to optimize the grinder’s settings. Key data points from the coloring and productivity monitoring systems can be reviewed onsite through the machine’s display and remote, or in the back office via the Fleet dashboard on VermeerOne™ platform.

Powerful performance

Engineered for high-capacity throughput, this robust machine features a large 42-in × 60-in (106.7-cm × 152.4-cm) feed opening and double-strength infeed sidewalls that allow operators to process whole trees and other large organic materials with minimal restriction. The aggressive feed roller features down pressure for improved material control and pull-in power. For grinding, the machine uses a Series III duplex drum equipped with 18 bolt-on tips and nine replaceable hammers, delivering both durability and easy maintenance. For operators focused on the biomass market, an optional chip drum is also available.

Mobility and intelligent operation

The tracked undercarriage delivers enhanced onsite mobility with low ground pressure, providing jobsite flexibility and reducing material handling needs to optimize labor efficiency. The grinder comes standard with several smart features. An intelligent feed system automatically monitors engine speed and optimizes infeed speed, while the EcoIdle™ engine control system helps reduce fuel consumption, noise and machine wear when not feeding material. Using the full-function wireless remote, operators can control operating functions from up to 300 ft (91 m) away. The optional Damage Defense system protects the hammermill from metal contaminants by detecting initial contact and reversing and stopping the feed system. Additionally, the HG4000TX integrates with VermeerOne platform, a telematics solution delivering real-time equipment management data.

For more information about the Vermeer HG4000TX horizontal grinder, contact your local Vermeer dealer or visit vermeer.com.
