Separation and Sorting Technology: how it works, key numbers and troubleshooting
Fundamentals
Separation follows a property
Every separator exploits one physical difference between what you want and what you do not: size (screens), density and shape (air classifiers, ballistic separators, wet tables), magnetism (overband and drum magnets), electrical conductivity (eddy-current separators), colour, spectrum or shape (optical sorters with NIR, VIS, X-ray, LIBS or AI cameras). A sorting line is a sequence of such steps; the order matters as much as the machines, and the cheapest separation goes first.
Mechanical pre-sorting

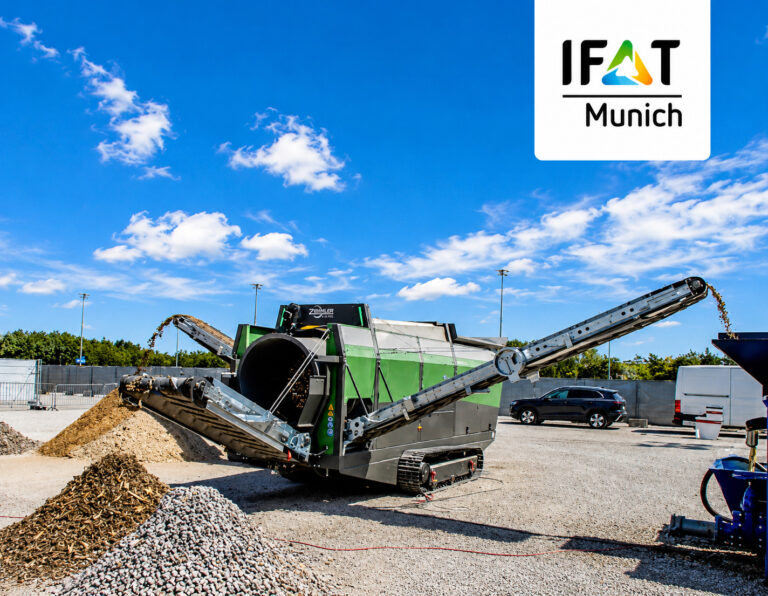

Trommel, disc and vibrating screens split the stream by size and remove fines; ballistic separators split 2D (flat, light) from 3D (rigid) and fines in one pass; air classifiers, drum separators and windsifters pull light films and paper from heavy fractions. Mechanical steps are robust and cheap per tonne and set up every downstream sensor step by delivering a narrower, more uniform stream.
Metals: magnets and eddy currents
Overband, drum and pulley magnets remove ferrous metal early to protect equipment and produce a saleable scrap fraction. Eddy-current separators throw non-ferrous metals (aluminium, copper, brass) out of the stream by inducing currents in them; their performance depends on particle size, belt speed, rotor frequency and a thin, single-layer feed. Stainless steel needs a sensor sorter or a special high-gradient magnet.
Sensor-based sorting

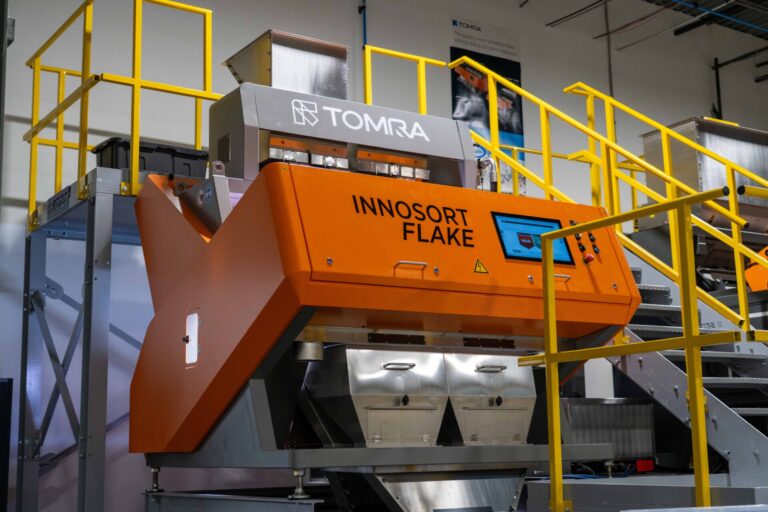

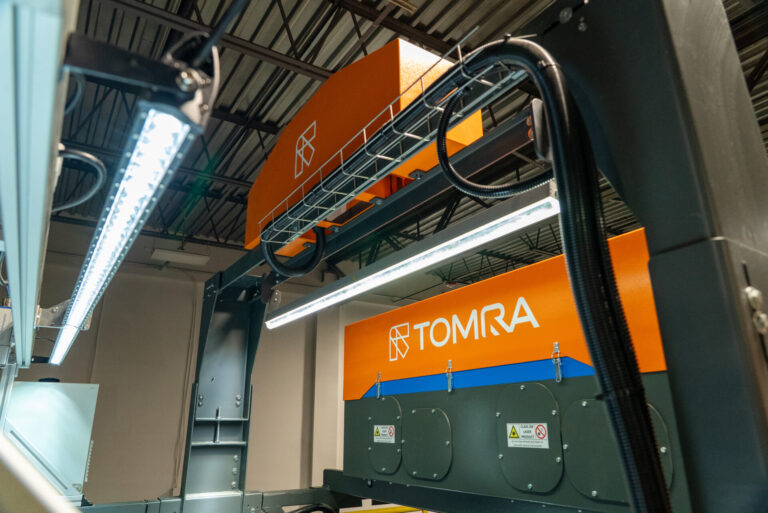

An optical sorter scans a single layer of material on a fast belt, identifies each object by its near-infrared spectrum (polymer type), colour, X-ray transmission (density, halogens) or laser-induced spectrum (metal alloys), and ejects it with a timed air jet. Modern machines add AI object recognition for shapes and packaging types. Purity and recovery are traded against each other through the ejection settings; throughput per metre of belt width is the sizing number.
Purity, recovery and the line balance
Purity is the share of the target material in the product; recovery is the share of the target material in the feed that ends up in the product. No separator gives 100 % of both, and the market sets the purity; recovery is what remains. Rescanning rejects, adding a quality-control sorter on the product and keeping the burden depth low on every belt are the usual routes to a better balance.
Key parameters
| Parameter | Typical range | Rule of thumb |
|---|---|---|
| Optical sorter belt speed | 2.5–4.5 m/s | Faster belts spread the material; single-layer presentation is the aim |
| Optical sorter throughput | 3–12 t/h per metre belt width depending on bulk density | Size on burden depth (one layer), not on the nameplate |
| Sorting purity / recovery | 95–99 % purity at 85–95 % recovery in one pass | Tighten purity and recovery drops; rescan the reject to recover it |
| Eddy-current particle size | 5–150 mm; best above 10 mm | Below 5 mm use high-frequency rotors or a fines eddy-current unit |
| Overband magnet suspension height | 300–500 mm above belt for 1,000–1,400 mm belts | Every centimetre of extra height costs field strength; keep burden depth low |
| Ballistic separator | Paddle inclination 15–25°; 10–40 t/h per unit | Steeper for more 3D in the heavy fraction, flatter for cleaner 2D |
| Trommel screen | 10–15 rpm; 40–60 % of critical speed | Hole size 2–3× the particle size you want to pass |
| Air classifier | Air speed 10–25 m/s at the separation zone | Adjust for the heaviest light fraction you want to lift, not the lightest |
Troubleshooting
| Symptom | Likely causes | What to do |
|---|---|---|
| Optical sorter purity drops | Burden too deep (objects overlap); dirty or misaligned lamp and sensor; wet or dusty material; ejection timing off | Reduce feed rate or widen belt, clean optics daily, dry or de-dust upstream, recalibrate ejection |
| Eddy-current recovery falls | Particle size too small; belt too fast or too slow; splitter position; ferrous contamination heating the rotor | Screen to size classes, tune belt speed and splitter, magnet upstream |
| Screen blinds | Wet, sticky or fibrous material; near-size particles; wrong aperture shape | Disc screen or flip-flow screen for sticky material, ball cleaning, coarser first cut |
| Film and paper in the heavy fraction | Air classifier air speed too low; ballistic paddle angle too flat; material clumps | Raise air speed, steeper paddles, bag opener upstream |
| Magnet misses ferrous | Suspension too high; burden too deep; belt too fast; magnet dirty | Lower the magnet, spread the burden, self-cleaning belt maintenance |
| Wrapping around shafts and screens | Wires, tapes, strapping, textiles | Pre-shredding, anti-wrap discs, regular cleaning stops, ballistic separator ahead of screens |
| Throughput below design | Uneven feed (surges); bottleneck at one machine; too much moisture | Metering drum or feeder at the head, balance the line, check moisture of incoming material |
